DISNEY MIRAGE
TIMBER TRACES
Typology: Multi-Speciality Healthcare Center
Timeline: Winter 2020
Software: Rhino, SketchUp, Enscape, Adobe Suite
Tutors: Ar. Nikhil Kohale
By adopting Disney's design principles in healthcare, we prioritize patient comfort and staff efficiency by limiting patient exposure to waiting areas and transition spaces, while keeping the backstage/offstage spaces hidden to minimize unwanted movement and smells associated with medical facilities.
i.e. “a hospital that doesn’t look, feel or smell like a hospital”
The New Multi-Specialty Healthcare Centre sits on a 2.9-acre site which has an abundance of vegetation. This becomes the driving factor for the concept. The interior and exterior design compliments the indigenous colors of the surrounding landscape, taking advantage of the natural light and also introducing healing gardens.
i.e. “a hospital that doesn’t look, feel or smell like a hospital”
The New Multi-Specialty Healthcare Centre sits on a 2.9-acre site which has an abundance of vegetation. This becomes the driving factor for the concept. The interior and exterior design compliments the indigenous colors of the surrounding landscape, taking advantage of the natural light and also introducing healing gardens.
ON STAGE vs OFF STAGE

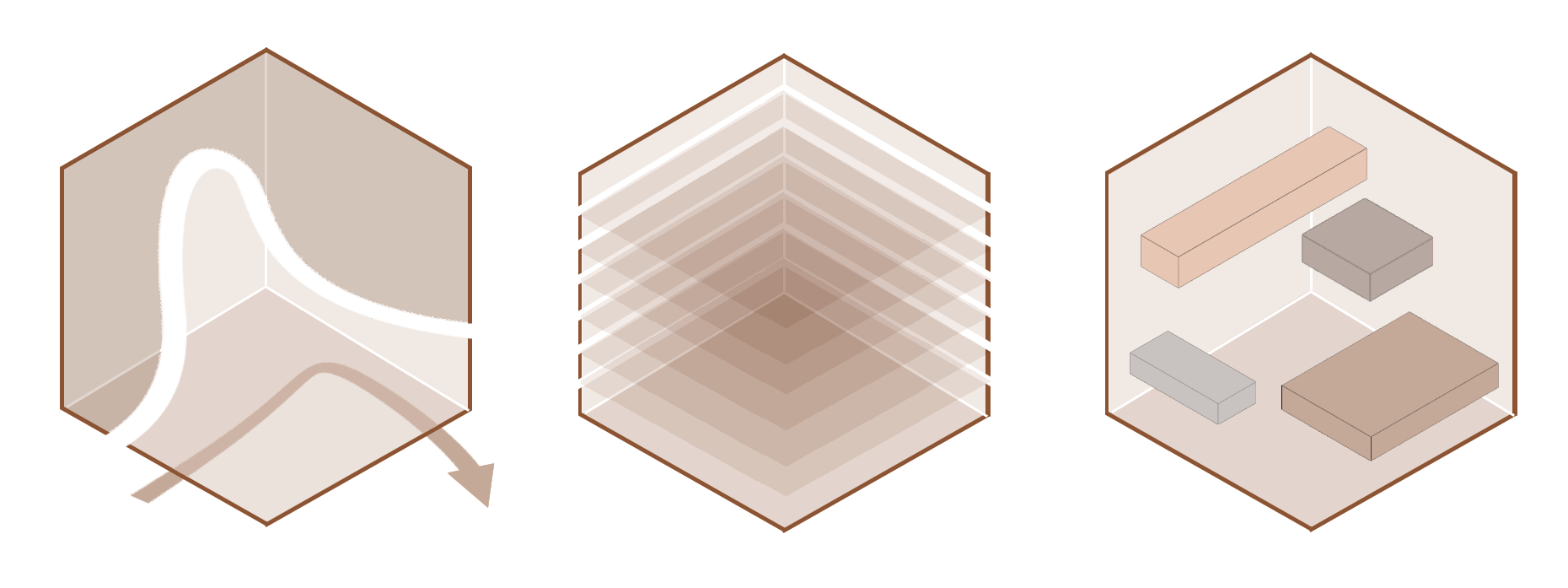

Efficient, patient-centered design with integrated lean principles for improved care and satisfaction. Separate on/off stage circulation ensures a calm, undisturbed flow for staff and material, resulting in a serene environment for patients. Open hallways promote infection control and efficient staff-patient interaction.
FORM DEVELOPMENT
EXPLODED ISOMETRIC
CONCEPTUAL SKETCHES
CONCEPTUAL SKETCHES
Maximize timber screen durability with our recommended fixing spans.
Accounting for natural expansion and contraction due to moisture levels in the environment.
SECTIONAL ELEVATION
SECTIONAL ELEVATION
MASTER PLAN
MASTER PLAN

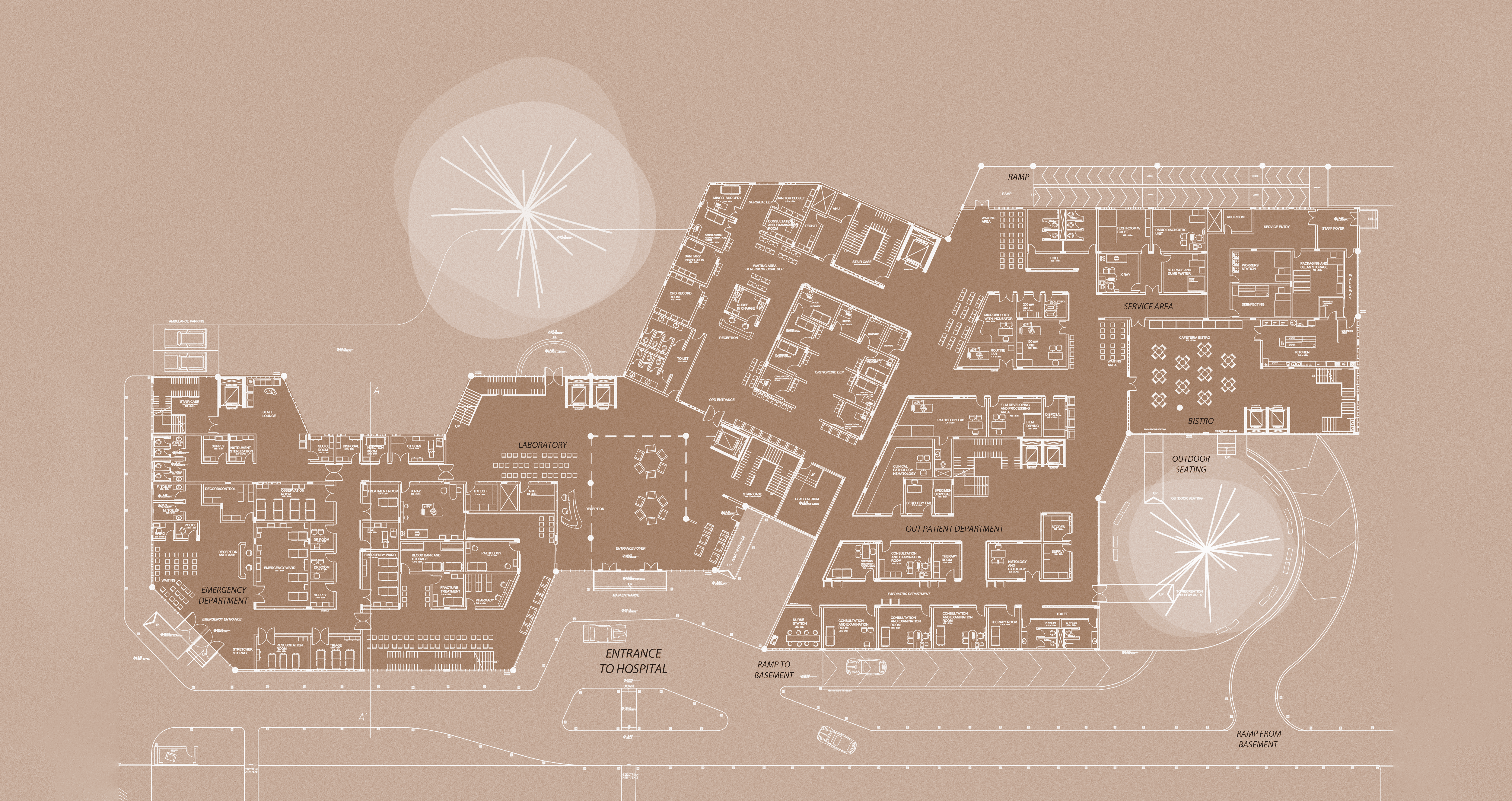

FLOOR PLANS
FLOOR PLANS
